Economical 6-phase Secondary Injection Test Set

Model: HME-1200

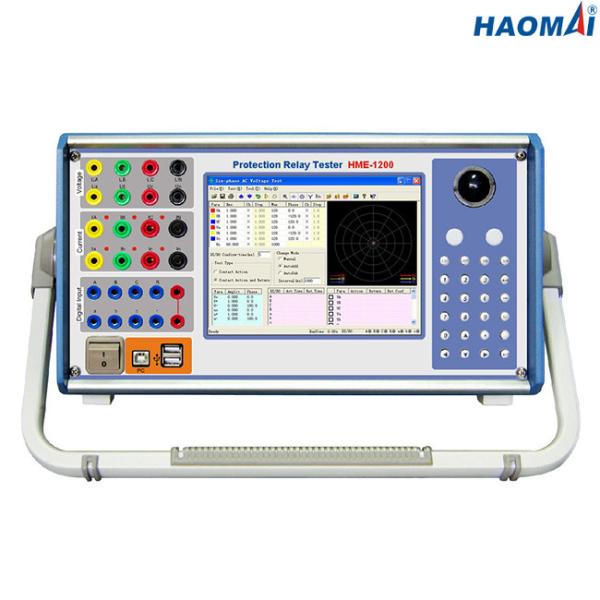

The Economical 6-phase Secondary Injection Test Set HME-1200 is all-in-one relay test set with 6-phase current(6×30A) and 6-phase voltage(6×120V) outputs, which can be used to test electro-mechanical, solid-state and microprocessor-based protection relays.
The HME-1200 can be operated locally via trackball mouse and keyboard, also can be operated via software running a laptop with Windows operating system.

Main Features
● Most cost-effective 6-phase relay tester
● 6-phase current(6×30A) + 6-phase voltage(6×120V) output
● Embedded industrial PC with 8-inch LCD screen
● Both local test and PC remote test available
● 8 Digital Inputs + 8 Digital Outputs
● Abundant test modules for testing various protection relays

Technical Data
Current Generator

Setting range	6-phase AC(L-N)	6x0…30A
	3-phase AC(L-N)	3x0…60A
	1-phase AC(LL-LN)	1x0…180A
	DC(L-N)	6x0…±10 A
Power	6-phase AC(L-N)	6x300VA at 30A
	3-phase AC(L-N)	3x450VA at 60A
	1-phase AC(LL-LN)	1x1000VA at 180A
	DC(L-N)	6x70VA at 10A
Accuracy	AC: ≤0.2%
Accuracy	DC: ≤0.5%
Resolution	1mA

Voltage Generator

Setting range	6-phase AC(L-N)	6x0…120V
	3-phase AC(L-N)	3x0…240V
	DC(L-N)	6x0…±160V
Power	6-phase AC(L-N)	6x80VA at 120V
	3-phase AC(L-N)	3x100VA at 240V
	DC(L-N)	6x70VA at 160V
Accuracy	AC: ≤0.2%
	DC: ≤0.5%
Resolution	1mV

Auxiliary DC Supply

Voltage range	110V/220V(max.1.5A)
Power	max.165VA/330VA

Digital Inputs

Number	8
Input characteristics	idle contact or potential-free contact
Threshold characteristics	“0”:0～6V; “1”:12V～250V
Max. measuring time	999999.999s
Time accuracy	±1ms
Time resolution	1ms

Digital Outputs

Number	8
Type	idle contact
Break capacity	250VAC/0.5A, 250VDC/0.2A

General Generators

Frequency	range: 0~1000Hz
	accuracy:<1mHz(0~65Hz);<10mHz(65~450Hz);<20mHz(450~1000Hz)
	resolution: 0.01Hz
Phase	range: -360° ~+360°
	accuracy: 0.1°
	resolution: 0.1°
Harmonic	superposition order: 2~20 times
Harmonic	distortion: ≤0.5%

Power Supply

Nominal input voltage	customized (AC220V/230V±10%, 1-phase)
Nominal frequency	50/60Hz
Rated current	10A at 230V / 12A at 120V
Connection	standard AC socket (IEC 60320)

Environmental Conditions

Operation temperature	0 ... +50 °C (+32 ... +122 °F)
Storage temperature	-25 ... +70 °C (-13 ... +158 °F)
Humidity range	relative humidity 5 ... 95 %, non-condensing
Vibration	IEC 60068-2-6(20m/s2 at 10 ... 150 Hz)

Miscellaneous

Weight	20.3kg(44.75 lb)
Dimensions (W x H x D, without handle)	470×550×280mm(18.50x21.65x11.02 in)
Connection port	2 USB ports, 1 serial port

The Economical 6-phase Secondary Injection Test Set HME-1200 is the economical choice for testing conventional protective relays, such as electro-mechanical, solid-state and microprocessor-based protective relays.
